8-bit bidirectional voltage level translator, CMOS technology, featuring 8 channels with 3-state outputs. Operates from 2.7V to 5.5V supply voltage, with a typical operating voltage of 5V. Offers a propagation delay of 6.7ns and a turn-on delay time of 9.8ns. Designed for surface mount with a 24-pin SSOP package, this RoHS compliant component is supplied on tape and reel.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC4245ADBR technical specifications.
General
Package/Case
SSOP
Channel Type
Bidirectional
Direction
Bidirectional
Height
1.95mm
High Level Output Current
-24mA
Lead Free
Lead Free
Length
8.2mm
Logic Function
Transceiver, Translator
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
80uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Inputs
1
Number of Outputs
8
Number of Transceivers
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
6.7ns
Quiescent Current
80uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
1.95mm
Turn-On Delay Time
9.8ns
Weight
0.006081oz
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC4245ADBR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC4245ADBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

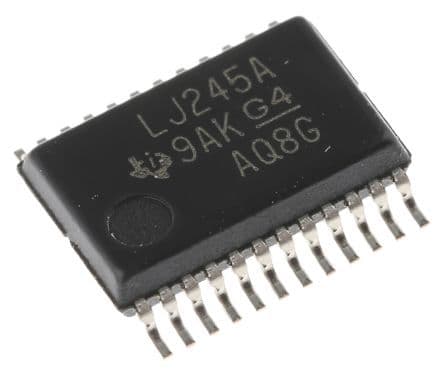

Product Images
