8-bit bidirectional voltage level translator featuring 8 channels and 8 transceivers. CMOS technology enables operation from 2.7V to 5.5V supply voltage, with a typical operating voltage of 3.3V. Offers 3-STATE, voltage output type with a high level output current of -24mA and low level output current of 24mA. Surface mountable in a TSSOP package, this non-inverting logic translator boasts a propagation delay of 6.3ns.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC4245APW technical specifications.
General
Package/Case
TSSOP
Direction
Bidirectional
High Level Output Current
-24mA
Lead Free
Lead Free
Logic Function
Transceiver, Translator
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Outputs
8
Number of Transceivers
8
Operating Supply Voltage
3.3V
Output Type
3-STATE, Voltage
Package Quantity
60
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
6.3ns
Quiescent Current
80uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
9.8ns
Weight
0.003157oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC4245APW Datasheet
Download the complete datasheet for Texas Instruments SN74LVC4245APW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

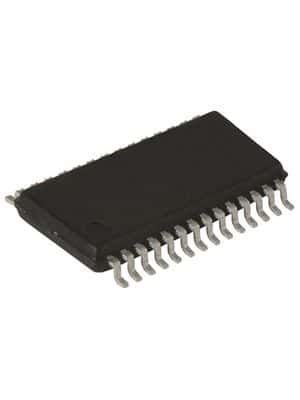

Product Images
