Texas Instruments
SNJ54ABT18502HV
Scan Test Device With 18-Bit Registered Bus Transceiver 68-CFP -55 to 125
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SNJ54ABT18502HV technical specifications.
General
| Direction | Bidirectional |
| Lead Free | Contains Lead |
| Logic Function | Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 18 |
| Number of Channels | 18 |
| Number of Elements | 2 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 18.5ns |
| Quiescent Current | 33mA |
| RoHS Compliant | No |
| Technology | BICMOS |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments SNJ54ABT18502HV Datasheet
Download the complete datasheet for Texas Instruments SNJ54ABT18502HV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

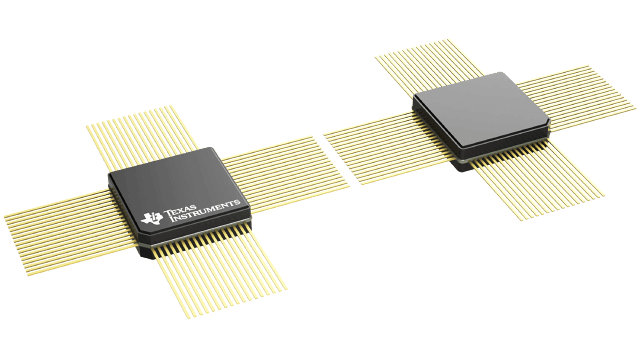

Product Images
