Technical Specifications
Texas Instruments SNJ54LS240W technical specifications.
General
| High Level Output Current | -12mA |
| Lead Free | Contains Lead |
| Logic Function | Buffer |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Elements | 2 |
| Number of Inputs | 8 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Packaging | Rail/Tube |
| Polarity | Inverting |
| Propagation Delay | 30ns |
| Quiescent Current | 26mA |
| RoHS Compliant | No |
| Technology | BIPOLAR |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments SNJ54LS240W Datasheet
Download the complete datasheet for Texas Instruments SNJ54LS240W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

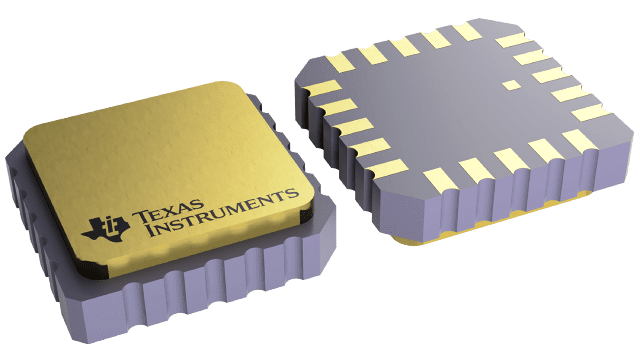

Product Images
