Texas Instruments
SNJ54LVTH245AFK
3.3-V ABT Octal Bus Transceivers With 3-State Outputs 20-LCCC -55 to 125
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SNJ54LVTH245AFK technical specifications.
General
| Direction | Bidirectional |
| Lead Free | Contains Lead |
| Logic Function | Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 3.3V |
| Output Type | 3-STATE |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 7.4ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Technology | BICMOS |
| Turn-On Delay Time | 7.4ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments SNJ54LVTH245AFK Datasheet
Download the complete datasheet for Texas Instruments SNJ54LVTH245AFK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

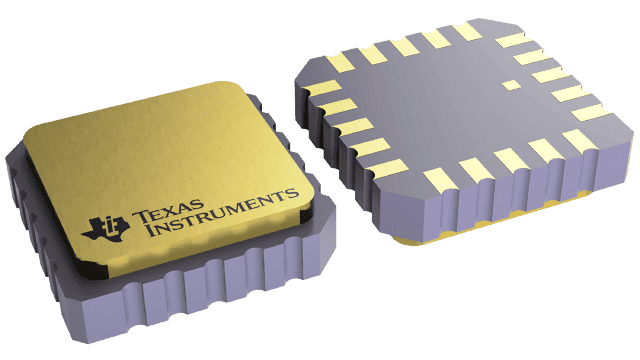

Product Images
