Texas Instruments
TAS2505IRGET
2-W, mono, digital & analog input Class-D audio amp with audio processing & mono headphone amplifier 24-VQFN -40 to 85
PackageVQFN
MountingSurface Mount
Power2W
Quick Jump:
Technical Specifications
Texas Instruments TAS2505IRGET technical specifications.
General
Package/Case
VQFN
Features
I²C
Height
0.95mm
Lead Free
Lead Free
Length
4.15mm
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2W
Max Supply Voltage
1.95V
Min Supply Voltage
1.5V
Mount
Surface Mount
Number of Channels
1
Output Power
2W
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
55dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
880um
Voltage Gain
12.04dB
Width
4.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS2505IRGET Datasheet
Download the complete datasheet for Texas Instruments TAS2505IRGET to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

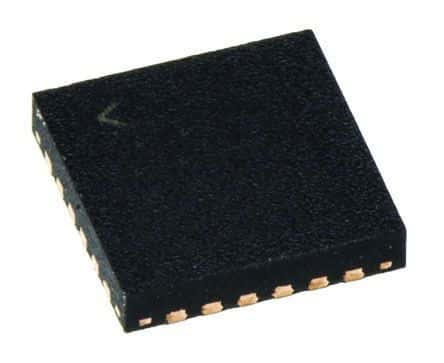

Product Images
