Texas Instruments
TAS2553YFFR
2.8W Digital/Analog Input Smart Amp with I/V Sense Speaker Protection and Integ. 7.5V Class-G Boost 30-DSBGA -40 to 85
MountingSurface Mount
Power4W
Quick Jump:
Technical Specifications
Texas Instruments TAS2553YFFR technical specifications.
General
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
2.8W
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
1
Output Power
4W
Package Quantity
3000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
7.1mA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS2553YFFR Datasheet
Download the complete datasheet for Texas Instruments TAS2553YFFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

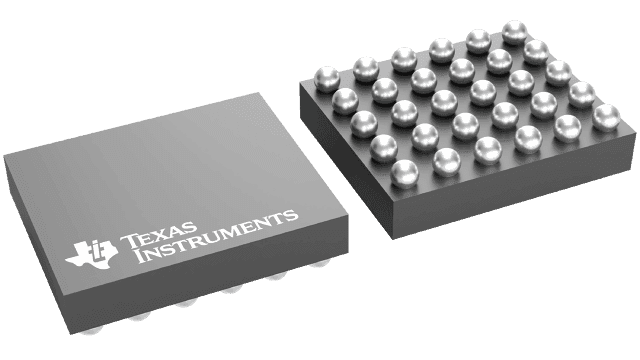

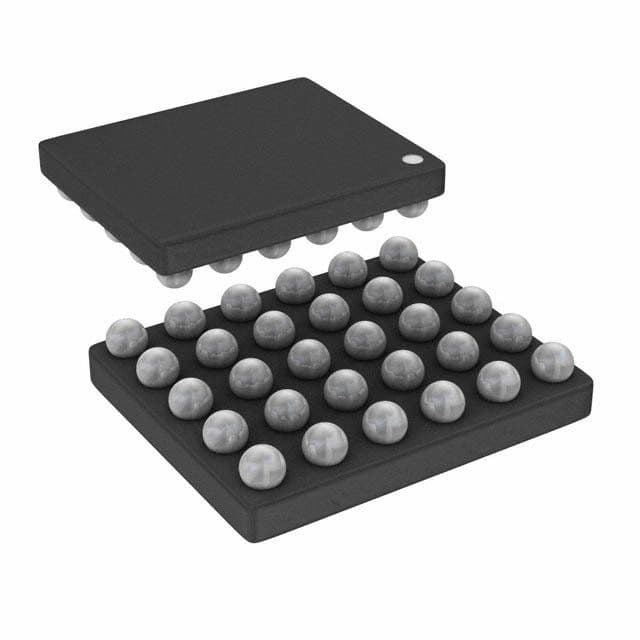

Product Images
