Texas Instruments
TAS5103DAP
15-W stereo, 8- to 23-V supply, PWM input open loop Class-D audio amplifier 32-HTSSOP 0 to 70
PackageHTSSOP
Current10mA
MountingSurface Mount
Power30W
Quick Jump:
Technical Specifications
Texas Instruments TAS5103DAP technical specifications.
General
Package/Case
HTSSOP
Lead Free
Lead Free
Load Impedance
8R
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Power
15W
Max Supply Voltage
23V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
2
Output Power
30W
Package Quantity
46
Packaging
Rail/Tube
Power Dissipation
600mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
10mA
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5103DAP Datasheet
Download the complete datasheet for Texas Instruments TAS5103DAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

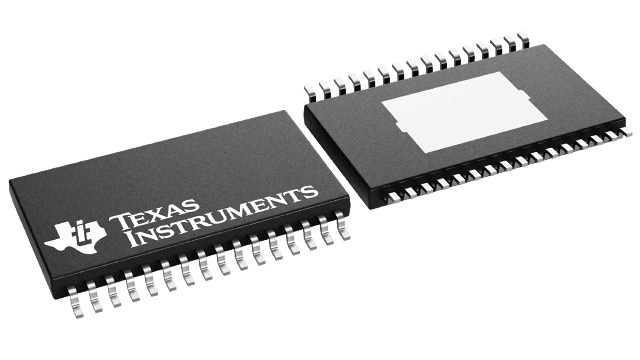

Product Images
