Texas Instruments
TAS5103DAPR
15-W stereo, 8- to 23-V supply, PWM input open loop Class-D audio amplifier 32-HTSSOP 0 to 70
PackageHTSSOP EP
Current10mA
MountingSurface Mount
Power20W
Quick Jump:
Technical Specifications
Texas Instruments TAS5103DAPR technical specifications.
General
| Package/Case | HTSSOP EP |
| Dual Supply Voltage | 18V |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 15W |
| Max Power Dissipation | 600mW |
| Mount | Surface Mount |
| Output Power | 20W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 600mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Supply Type | Dual |
| Weight | 0.006388oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TAS5103DAPR Datasheet
Download the complete datasheet for Texas Instruments TAS5103DAPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

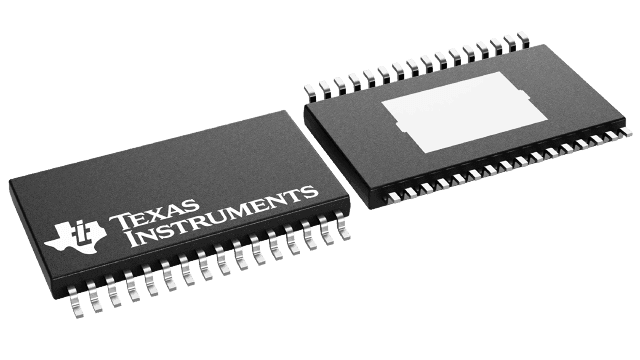

Product Images
