Automotive, 1-channel, 22W Class-D audio amplifier with analog input. Features a wide operating supply voltage range of 4.5V to 18V and a maximum output power of 22W. Offers a voltage gain of 36dB and a high Power Supply Rejection Ratio (PSRR) of 75dB. Includes I²C diagnostics and load dump protection. Packaged in a 16-pin HTSSOP for surface mounting, operating from -40°C to 125°C.
PackageHTSSOP
MountingSurface Mount
Power22W
Quick Jump:
Technical Specifications
Texas Instruments TAS5421QPWPRQ1 technical specifications.
General
Package/Case
HTSSOP
Common Mode Rejection Ratio
63dB
Gain
36dB
Input Type
DIFFERENTIAL
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Power
22W
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
1
Operating Supply Current
16mA
Output Current
3.5A
Output Power
22W
Package Quantity
2000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
75dB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Supply Type
Single
Voltage Gain
36dB
Weight
0.002212oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5421QPWPRQ1 Datasheet
Download the complete datasheet for Texas Instruments TAS5421QPWPRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

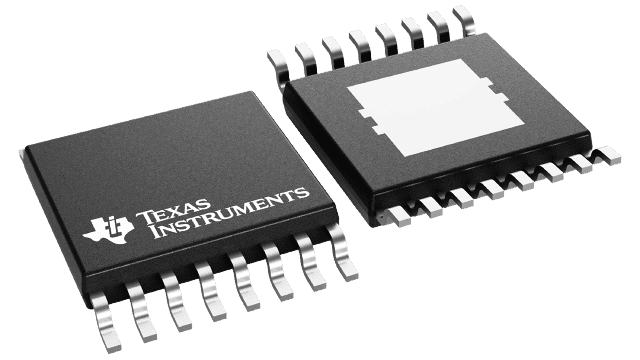

Product Images
