Texas Instruments
TAS5424ATDKDQ1
28-W, 4-ch, 6- to 26.5-V, analog input class-D audio amplifier w/ I<sup>2</sup>C diagnostics, load dump 44-HSSOP -40 to 105
PackageHSSOP
Current300mA
Power90W
Quick Jump:
Technical Specifications
Texas Instruments TAS5424ATDKDQ1 technical specifications.
General
Package/Case
HSSOP
Dual Supply Voltage
14.4V
Features
I²C
Gain
32dB
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Power
116W
Max Power Dissipation
80W
Max Supply Voltage
22V
Min Supply Voltage
8V
Output Power
90W
Package Quantity
29
Packaging
Rail/Tube
Power Dissipation
80W
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
240mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Supply Current
300mA
Supply Type
Dual
Voltage Gain
32dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5424ATDKDQ1 Datasheet
Download the complete datasheet for Texas Instruments TAS5424ATDKDQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

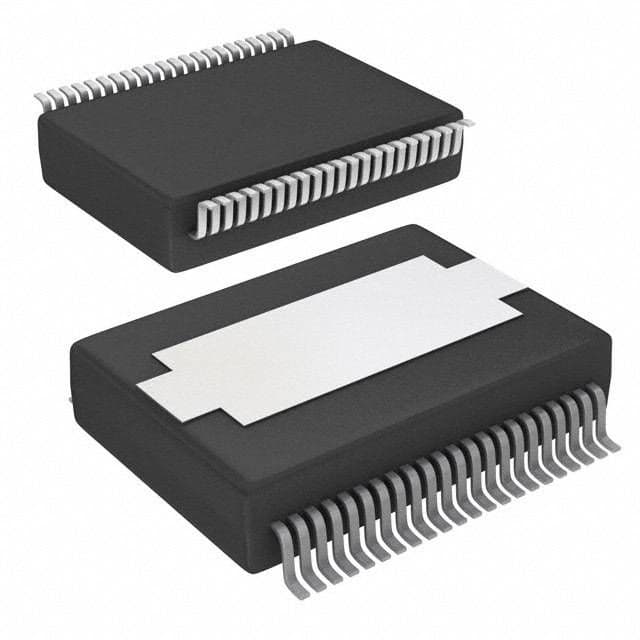

Product Images
