Texas Instruments
TAS5601DCA
20-W stereo, 10- to 26-V supply, PWM SE input Class-D audio amplifier 56-HTSSOP -40 to 85
PackageHTSSOP
Current11mA
Power20W
Quick Jump:
Technical Specifications
Texas Instruments TAS5601DCA technical specifications.
General
Package/Case
HTSSOP
Dual Supply Voltage
24V
Lead Free
Lead Free
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
20W
Max Power Dissipation
5.5W
Max Supply Voltage
26V
Min Supply Voltage
10V
Number of Channels
4
Operating Supply Voltage
24V
Output Power
20W
Package Quantity
35
Packaging
Rail/Tube
Power Dissipation
5.5W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TAS5601
Supply Current
11mA
Supply Type
Single
Weight
0.008356oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5601DCA Datasheet
Download the complete datasheet for Texas Instruments TAS5601DCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

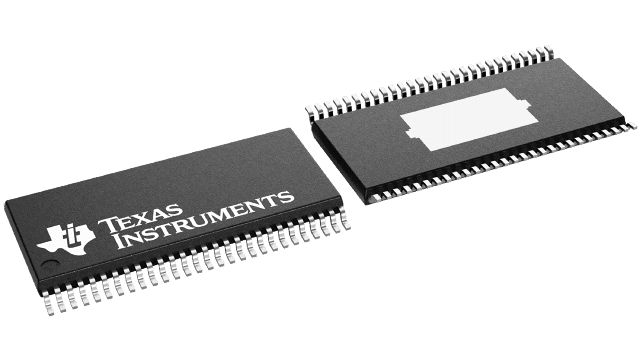

Product Images
