Texas Instruments
TAS5601DCAR
20-W stereo, 10- to 26-V supply, PWM SE input Class-D audio amplifier 56-HTSSOP -40 to 85
PackageHTSSOP
Current11mA
MountingSurface Mount
Power20W
Quick Jump:
Technical Specifications
Texas Instruments TAS5601DCAR technical specifications.
General
Package/Case
HTSSOP
Dual Supply Voltage
24V
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
20W
Max Power Dissipation
5.5W
Max Supply Voltage
26V
Min Supply Voltage
10V
Mount
Surface Mount
Operating Supply Voltage
24V
Output Power
20W
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
5.5W
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
11mA
Supply Type
Single
Weight
0.008356oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5601DCAR Datasheet
Download the complete datasheet for Texas Instruments TAS5601DCAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

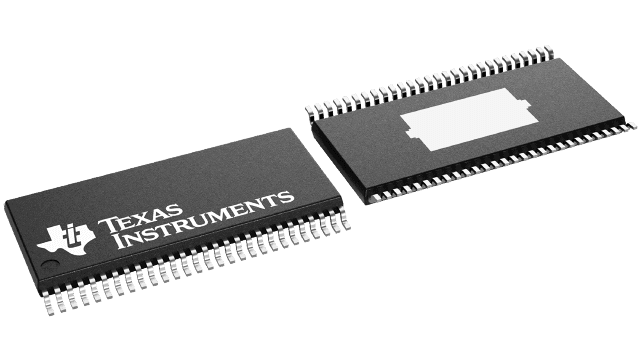

Product Images
