Texas Instruments
TAS5614APHDR
150-W stereo, 300-W mono, 18- to 38-V supply PWM input Class-D audio amplifier 64-HTQFP 0 to 70
PackageHTQFP
Current20mA
Power300W
Quick Jump:
Technical Specifications
Texas Instruments TAS5614APHDR technical specifications.
General
Package/Case
HTQFP
Gain Bandwidth Product
80kHz
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Power
300W
Max Power Dissipation
2.6W
Max Supply Voltage
38V
Min Supply Voltage
18V
Output Power
300W
Package Quantity
1000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
PurePath™ HD
Supply Current
20mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5614APHDR Datasheet
Download the complete datasheet for Texas Instruments TAS5614APHDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

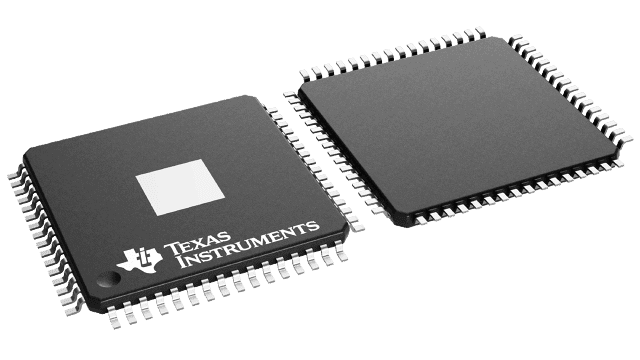

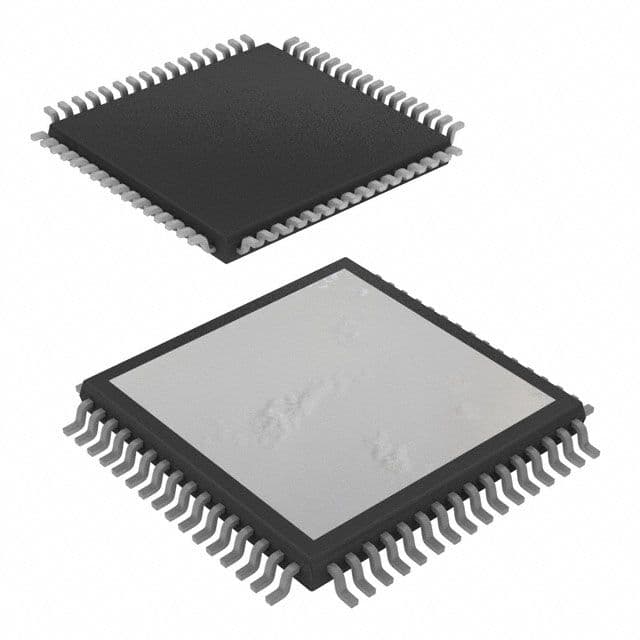

Product Images
