Texas Instruments
TAS5614LADDV
150-W stereo, 300-W mono, 12- to 38-V, PWM input Class-D audio amplifier w/ thermal enhancement 44-HTSSOP 0 to 125
PackageHTSSOP
MountingSurface Mount
Power150W
Quick Jump:
Technical Specifications
Texas Instruments TAS5614LADDV technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Lead Free
Lead Free
Length
14.1mm
Load Impedance
4R
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Power
300W
Max Power Dissipation
1.6W
Mount
Surface Mount
Number of Channels
2
Operating Supply Current
20mA
Operating Supply Voltage
12V
Output Power
150W
Package Quantity
35
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PurePath™ HD
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TAS5614LADDV Datasheet
Download the complete datasheet for Texas Instruments TAS5614LADDV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

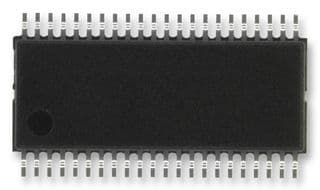

Product Images
