16-channel I/O expander featuring an I2C/SMBus interface with support for 100kHz and 400kHz operation. This integrated circuit operates from a 1.65V to 5.5V supply range and offers push-pull output types. Designed for broad environmental compatibility, it functions between -40°C and 85°C. Packaged in a 24-pin WQFN, this lead-free and RoHS-compliant component is supplied on tape and reel.
Frequency400kHz
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments TCA9535RTWR technical specifications.
General
Package/Case
QFN
Frequency
400kHz
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Number of I/Os
16
Output Type
PUSH-PULL
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TCA9535RTWR Datasheet
Download the complete datasheet for Texas Instruments TCA9535RTWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

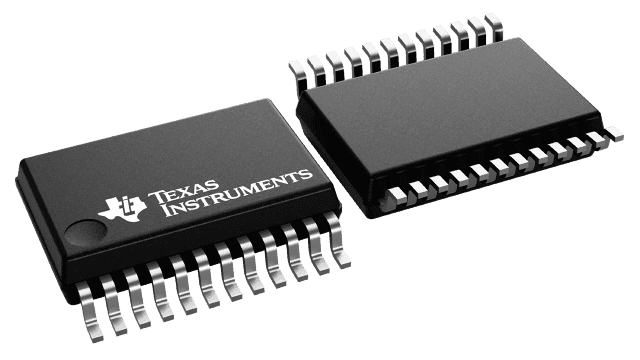

Product Images
