Digital receiver IC featuring 3 receivers and a maximum operating frequency of 165MHz. This component operates with a dual supply voltage of 3.3V, ranging from 3V to 3.6V, and has a maximum supply current of 370mA. Packaged in a 100-pin HTQFP, it is lead-free and RoHS compliant, suitable for operation between 0°C and 70°C.
Frequency165MHz
PackageHTQFP
Current370mA
Quick Jump:
Technical Specifications
Texas Instruments TFP401PZP technical specifications.
General
Package/Case
HTQFP
Dual Supply Voltage
3.3V
Lead Free
Lead Free
Max Dual Supply Voltage
3.6V
Min Dual Supply Voltage
3V
Max Frequency
165MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
370mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Receivers
3
Operating Supply Current
370mA
Operating Supply Voltage
3.3V
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
370mA
Weight
0.017827oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TFP401PZP Datasheet
Download the complete datasheet for Texas Instruments TFP401PZP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

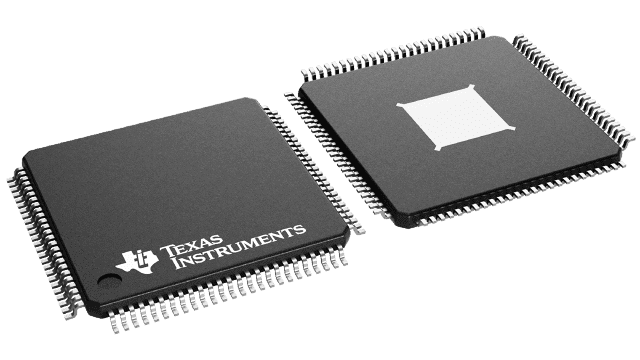

Product Images
