High-speed receiver IC featuring 1.65Gbps data rate and a single receiver channel. This component operates with a dual supply voltage range of 3V to 3.6V, consuming a maximum of 400mA. Encased in a 100-pin HTQFP package with SMD/SMT termination, it offers a 0°C to 70°C operating temperature range and is lead-free and RoHS compliant.
PackageHTQFP
Current400mA
Quick Jump:
Technical Specifications
Texas Instruments TFP403PZP technical specifications.
General
Package/Case
HTQFP
Dual Supply Voltage
3.3V
Height
1mm
Lead Free
Lead Free
Length
14mm
Max Dual Supply Voltage
3.6V
Min Dual Supply Voltage
3V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
4.3W
Max Supply Current
400mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Receivers
1
Operating Supply Current
400mA
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
400mA
Termination
SMD/SMT
Weight
0.017827oz
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TFP403PZP Datasheet
Download the complete datasheet for Texas Instruments TFP403PZP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

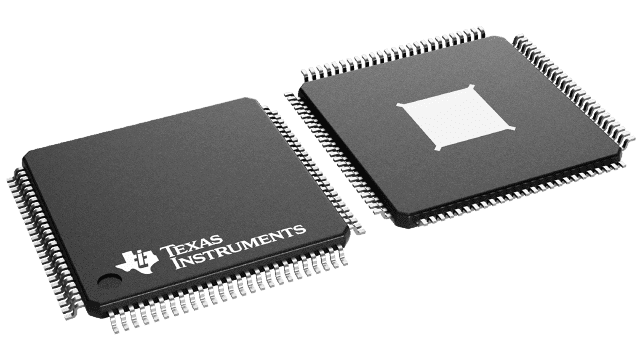

Product Images
