12-bit, 6 MSPS Analog-to-Digital Converter (ADC) featuring quad channel configuration with a parallel interface. Offers a 1.5 LSB Integral Nonlinearity (INL) and 69 dB Signal-to-Noise Ratio (SNR). Includes an integrated 16x FIFO and Channel AutoScan functionality. Operates from a 3V to 5.25V supply range with a typical power consumption of 186mW. Packaged in a 32-TSSOP, this RoHS compliant component is suitable for a wide operating temperature range of -40°C to 125°C.
PackageTSSOP
Current36mA
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1206CDAR technical specifications.
General
Package/Case
TSSOP
Conversion Rate
6000KS/s
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Elements
1
Number of Inputs
4
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
186mW
Power Dissipation
216mW
Reach SVHC Compliant
Unknown
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
6MS/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Current
36mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS1206CDAR Datasheet
Download the complete datasheet for Texas Instruments THS1206CDAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

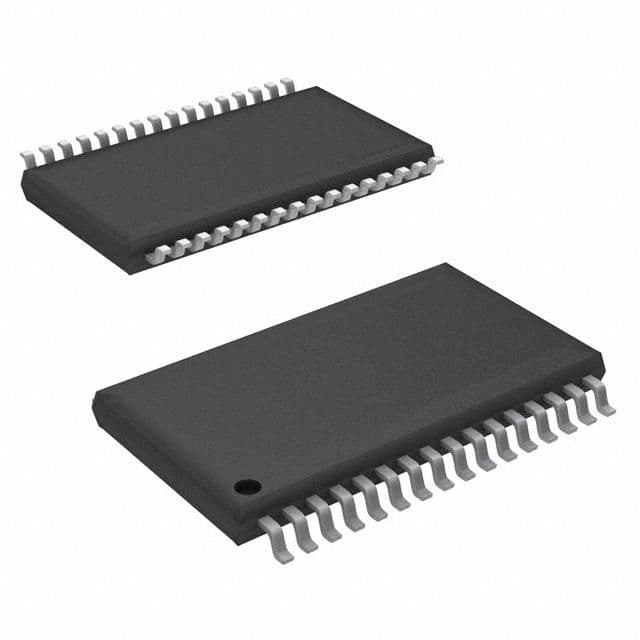

Product Images
