Quad-channel, 12-bit Analog-to-Digital Converter (ADC) with a 6 MSPS sampling rate. Features include 1.5 LSB Integral Nonlinearity (INL), 69dB Signal-to-Noise Ratio (SNR), and 71dB Spurious-Free Dynamic Range (SFDR). This unipolar ADC offers a parallel interface, integrated 16x FIFO, and channel autoscan capability. Operates from a 3V to 5.25V supply, with a nominal supply current of 36mA and power consumption of 186mW. Packaged in a 32-TSSOP, it supports an operating temperature range of -40°C to 125°C.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1206IDAR technical specifications.
General
Package/Case
TSSOP
Conversion Rate
6000KS/s
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Nominal Supply Current
36mA
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Inputs
4
Operating Supply Voltage
5.25V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
186mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
6000000S/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS1206IDAR Datasheet
Download the complete datasheet for Texas Instruments THS1206IDAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

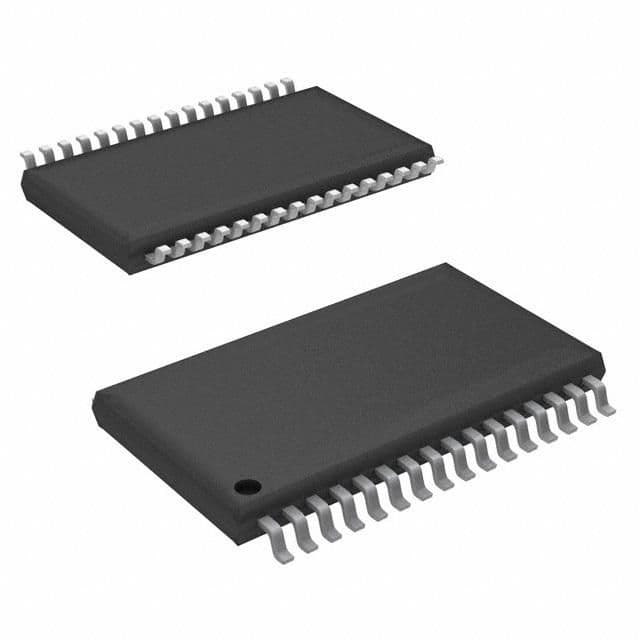

Product Images
