12-bit, 4-channel Analog-to-Digital Converter (ADC) with a 6 MSPS sampling rate. Features include a parallel interface, 1.5 LSB Integral Nonlinearity (INL), and 69dB Signal-to-Noise Ratio (SNR). This unipolar device operates from a 3V to 5.25V supply, consuming 186mW of power. It is housed in a 32-TSSOP package, RoHS compliant, and suitable for operation between -40°C and 125°C.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1206IDARG4 technical specifications.
General
Package/Case
TSSOP
Conversion Rate
6000KS/s
Integral Nonlinearity (INL)
1.5LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Nominal Supply Current
36mA
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Inputs
4
Operating Supply Voltage
5.25V
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
186mW
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
6000000S/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS1206IDARG4 Datasheet
Download the complete datasheet for Texas Instruments THS1206IDARG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

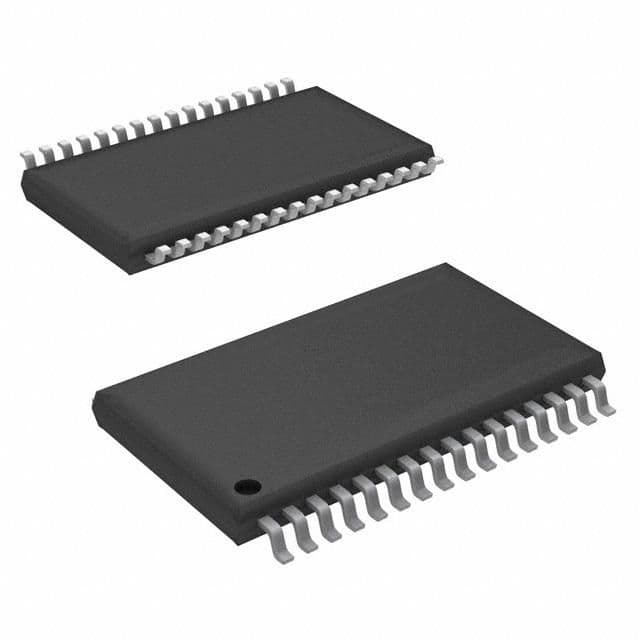

Product Images
