12-bit, 6 MSPS Analog-to-Digital Converter (ADC) featuring four configurable input channels. Offers a 1.8 LSB Integral Nonlinearity (INL) and 69 dB Signal-to-Noise Ratio (SNR). Includes an integrated 16x FIFO buffer and Channel AutoScan functionality. Operates with a 3V to 5.25V supply voltage range and consumes 186mW of power. Packaged in a 32-TSSOP, this component supports a parallel interface and operates from -40°C to 125°C.
PackageTSSOP
PolarityUnipolar
Power186mW
Quick Jump:
Technical Specifications
Texas Instruments THS1206QDA technical specifications.
General
Package/Case
TSSOP
Conversion Rate
6000KS/s
Integral Nonlinearity (INL)
1.8LSB
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
3V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
36mA
Number of A/D Converters
1
Number of Bits
12
Number of Converters
1
Number of Elements
1
Number of Inputs
4
Operating Supply Voltage
5V
Package Quantity
46
Packaging
Rail/Tube
Polarity
Unipolar
Power Consumption
186mW
Power Dissipation
216mW
Radiation Hardening
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
6MS/s
Signal to Noise Ratio (SNR)
69dB
Spurious-free dynamic range (SFDR)
71dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS1206QDA Datasheet
Download the complete datasheet for Texas Instruments THS1206QDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

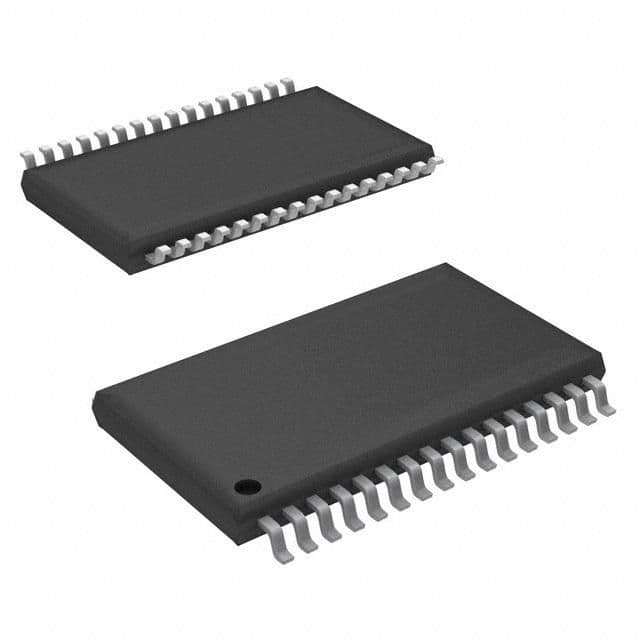

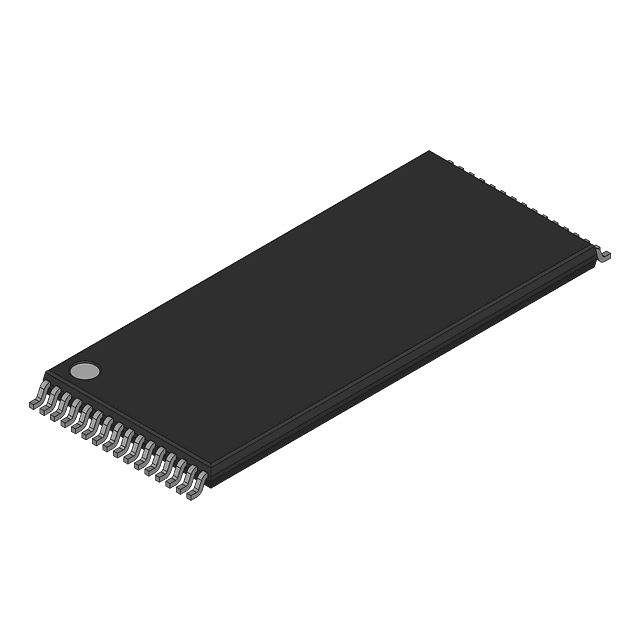

Product Images
