Dual operational amplifier featuring a 110MHz -3dB bandwidth and 103MHz gain bandwidth product. Delivers 270mA output current per channel with a high slew rate of 1300V/µs and 50ns settling time. Operates from a 5V to 15V dual supply or 10V to 30V single supply, with a low operating supply current of 4.9mA. Housed in an 8-SO PowerPAD package, this lead-free, RoHS compliant amplifier offers 56dB CMRR and 53dB PSRR.
PackageHSOP
Current13mA
Power1.87W
Quick Jump:
Technical Specifications
Texas Instruments THS3112IDDAR technical specifications.
General
-3db Bandwidth
110MHz
Bandwidth
110MHz
Package/Case
HSOP
Common Mode Rejection Ratio
56dB
Gain Bandwidth Product
103MHz
Input Bias Current
3uA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
5V
Max I/O Voltage
8mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.87W
Max Supply Voltage
30V
Min Supply Voltage
10V
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
4.9mA
Output Current per Channel
270mA
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
1.87W
Power Supply Rejection Ratio (PSRR)
53dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
THS3112
Settling Time
50ns
Slew Rate
1300V/µs
Supply Current
13mA
Unity Gain Bandwidth Product
103MHz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS3112IDDAR Datasheet
Download the complete datasheet for Texas Instruments THS3112IDDAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

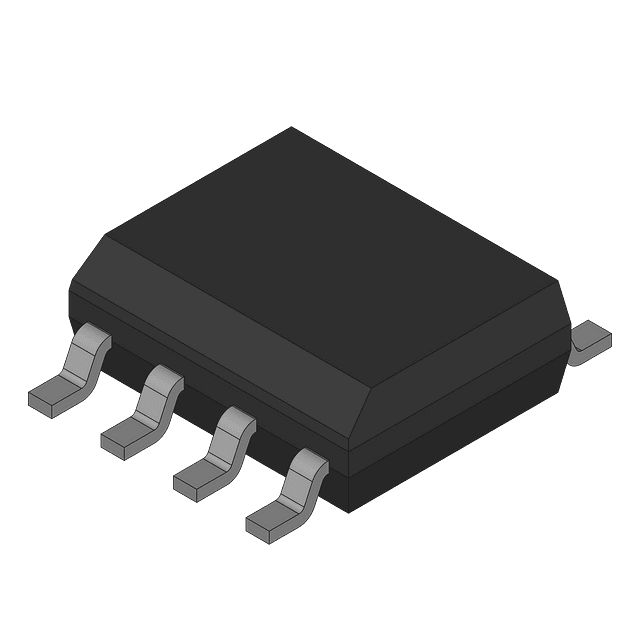

Product Images
