Dual 350-MHz low-noise voltage-feedback operational amplifier. Features a 3.5-GHz gain bandwidth product and a 470-V/µs slew rate. Operates from a 4.5-V to 16-V dual supply or 9-V to 32-V single supply. Offers 100-mA output current per channel and 7.8-mA operating supply current. Packaged in an 8-HVSSOP, this RoHS compliant component operates from -40°C to 85°C.
PackageHVSSOP
Current20mA
Power2.14W
Quick Jump:
Technical Specifications
Texas Instruments THS4022IDGNR technical specifications.
General
-3db Bandwidth
350MHz
Bandwidth
350MHz
Package/Case
HVSSOP
Common Mode Rejection Ratio
74dB
Gain Bandwidth Product
3.5GHz
Input Bias Current
6uA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
4.5V
Max I/O Voltage
2mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.14W
Max Supply Voltage
32V
Min Supply Voltage
9V
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
7.8mA
Output Current per Channel
100mA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.14W
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
40ns
Slew Rate
470V/µs
Supply Current
20mA
Voltage Gain
90.88dB
Weight
0.00067oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4022IDGNR Datasheet
Download the complete datasheet for Texas Instruments THS4022IDGNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

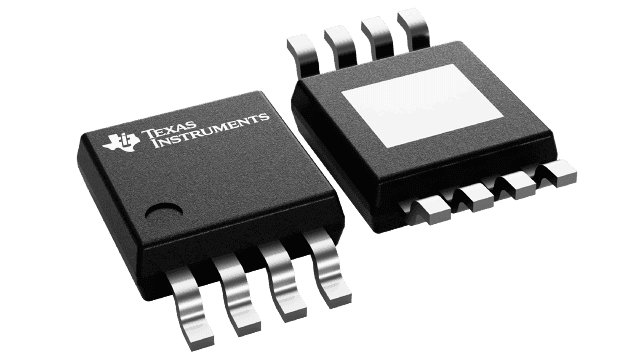

Product Images
