Technical Specifications
Texas Instruments THS4031MFKB technical specifications.
General
Package/Case
LCC
Common Mode Rejection Ratio
90dB
Gain Bandwidth Product
120MHz
Input Bias Current
6uA
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
32V
Min Supply Voltage
9V
Number of Channels
1
Number of Elements
1
Packaging
Rail/Tube
Power Dissipation
1.375W
Power Supply Rejection Ratio (PSRR)
85dB
Radiation Hardening
No
RoHS Compliant
No
Slew Rate
100V/µs
Unity Gain Bandwidth Product
120MHz
Voltage Gain
95dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments THS4031MFKB Datasheet
Download the complete datasheet for Texas Instruments THS4031MFKB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

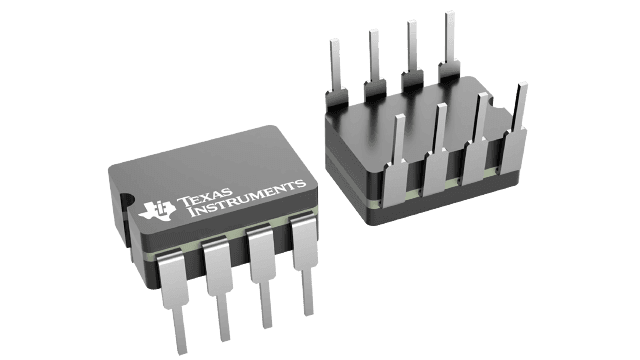

Product Images
