High-speed, single-channel audio amplifier with a 1.4GHz -3dB bandwidth and 400MHz bandwidth. Features a 1000V/µs slew rate and 68dB voltage gain. Operates with a dual supply voltage range of 2.5V to 7.5V or a single supply of 5V to 15V. This surface-mount integrated circuit offers 160mA output current per channel and is RoHS compliant.
PackageSON
Current24mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments THS4271DRBR technical specifications.
General
-3db Bandwidth
1.4GHz
Bandwidth
400MHz
Package/Case
SON
Common Mode Rejection Ratio
67dB
Gain Bandwidth Product
350MHz
Input Bias Current
6uA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Max Dual Supply Voltage
7.5V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.18W
Max Supply Voltage
15V
Min Supply Voltage
5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Current
22mA
Output Current per Channel
160mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
75dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
1000V/µs
Supply Current
24mA
Voltage Gain
68dB
Weight
0.000808oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4271DRBR Datasheet
Download the complete datasheet for Texas Instruments THS4271DRBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

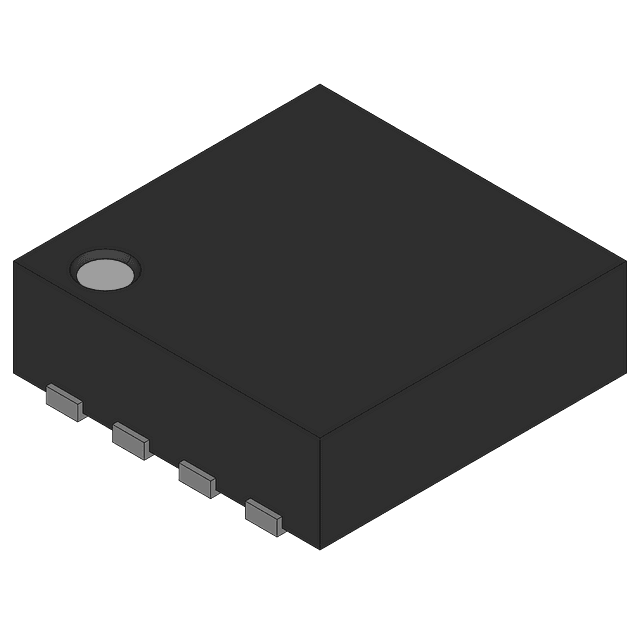

Product Images
