Differential amplifier IC featuring a 260MHz -3dB bandwidth and 200MHz gain bandwidth product. This single-channel operational amplifier offers a high slew rate of 1800V/µs and 130mA output current per channel. Operating from dual supply voltages between 2.25V and 7.5V, it boasts a 74dB CMRR and 72dB PSRR. Packaged in an 8-pin HVSSOP, this lead-free component is suitable for operation across a -40°C to 85°C temperature range.
PackageHVSSOP
Current20mA
Power1.71W
Quick Jump:
Technical Specifications
Texas Instruments THS4504DGNG4 technical specifications.
General
-3db Bandwidth
260MHz
Amplifier Type
DIFFERENTIAL
Bandwidth
260MHz
Package/Case
HVSSOP
Common Mode Rejection Ratio
74dB
Dual Supply Voltage
5V
Gain Bandwidth Product
200MHz
Input Bias Current
4uA
Input Offset Voltage (Vos)
7mV
Input Resistance
10MR
Lead Free
Lead Free
Max Dual Supply Voltage
7.5V
Min Dual Supply Voltage
2.25V
Max I/O Voltage
-7mV
Max Input Voltage
-2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.71W
Max Supply Voltage
15V
Min Supply Voltage
4.5V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
16mA
Output Current per Channel
130mA
Package Quantity
80
Packaging
Rail/Tube
Power Dissipation
1.71W
Power Supply Rejection Ratio (PSRR)
72dB
RoHS Compliant
Yes
Series
THS4504
Settling Time
20ns
Slew Rate
1800V/µs
Supply Current
20mA
Unity Gain Bandwidth Product
200MHz
Voltage Gain
54dB
Weight
0.000861oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4504DGNG4 Datasheet
Download the complete datasheet for Texas Instruments THS4504DGNG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

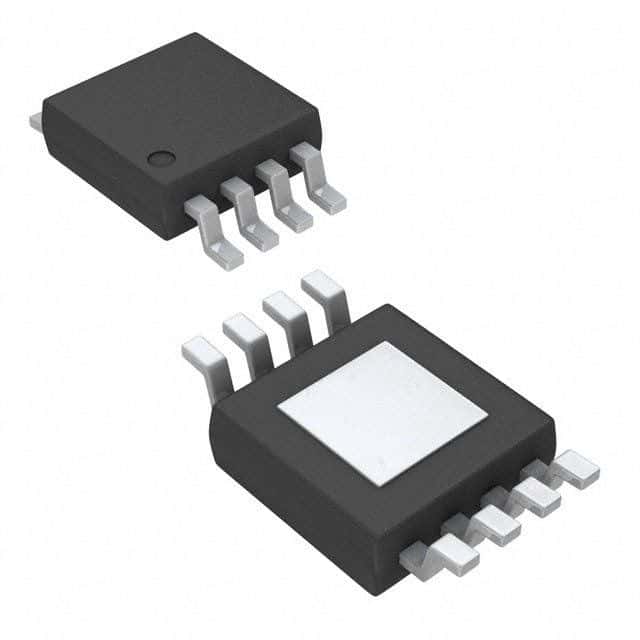

Product Images
