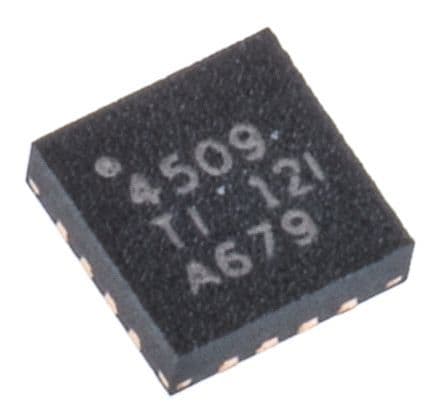

1.9-GHz, wideband, low-noise, low-distortion, fully-differential amplifier. This single-channel operational amplifier features a 2GHz -3dB bandwidth and a 3GHz gain bandwidth product. It offers a high Common Mode Rejection Ratio of 90dB and Power Supply Rejection Ratio of 90dB. Designed for surface mount applications, it operates with dual supply voltages from 1.5V to 2.625V and a single supply voltage of 5V. The amplifier boasts a 6600V/µs slew rate and a 96mA output current per channel.
PackageQFN
Current37.7mA
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments THS4509RGTT technical specifications.
General
-3db Bandwidth
2GHz
Amplifier Type
DIFFERENTIAL
Bandwidth
2GHz
Package/Case
QFN
Common Mode Rejection Ratio
90dB
Dual Supply Voltage
2.5V
Gain Bandwidth Product
3GHz
Height
0.9mm
Input Bias Current
15.5uA
Input Offset Voltage (Vos)
4mV
Input Resistance
50kR
Lead Free
Lead Free
Length
3mm
Max Dual Supply Voltage
2.625V
Min Dual Supply Voltage
1.5V
Max Input Voltage
-750mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.3W
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
37.7mA
Operating Supply Voltage
5V
Output Current per Channel
96mA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.3W
Power Supply Rejection Ratio (PSRR)
90dB
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50kR
RoHS Compliant
Yes
Slew Rate
6600V/µs
Supply Current
37.7mA
Thickness
900um
Unity Gain Bandwidth Product
3GHz
Voltage Gain
68dB
Weight
0.00085oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
