High-performance fully differential amplifier with a 1.6GHz -3dB bandwidth and 2.8GHz gain bandwidth product. Features low noise and low distortion, operating from a 1.5V to 2.5V dual supply or 3V to 5.5V single supply. Offers a high slew rate of 5100V/µs and 96mA output current, with excellent 90dB common mode rejection ratio and power supply rejection ratio. Packaged in a 16-VQFN, this RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageQFN
Current40.9mA
Power2.3W
Quick Jump:
Technical Specifications
Texas Instruments THS4513RGTTG4 technical specifications.
General
-3db Bandwidth
1.6GHz
Amplifier Type
DIFFERENTIAL
Bandwidth
1.6GHz
Package/Case
QFN
Common Mode Rejection Ratio
90dB
Gain Bandwidth Product
2.8GHz
Input Bias Current
15.5uA
Input Offset Voltage (Vos)
4mV
Lead Free
Lead Free
Max Dual Supply Voltage
2.5V
Min Dual Supply Voltage
1.5V
Max I/O Voltage
4mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
37.7mA
Output Current
96mA
Package Quantity
250
Packaging
Tape and Reel
Power Dissipation
2.3W
Power Supply Rejection Ratio (PSRR)
90dB
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
16ns
Slew Rate
5100V/µs
Supply Current
40.9mA
Unity Gain Bandwidth Product
2.8GHz
Voltage Gain
63dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4513RGTTG4 Datasheet
Download the complete datasheet for Texas Instruments THS4513RGTTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

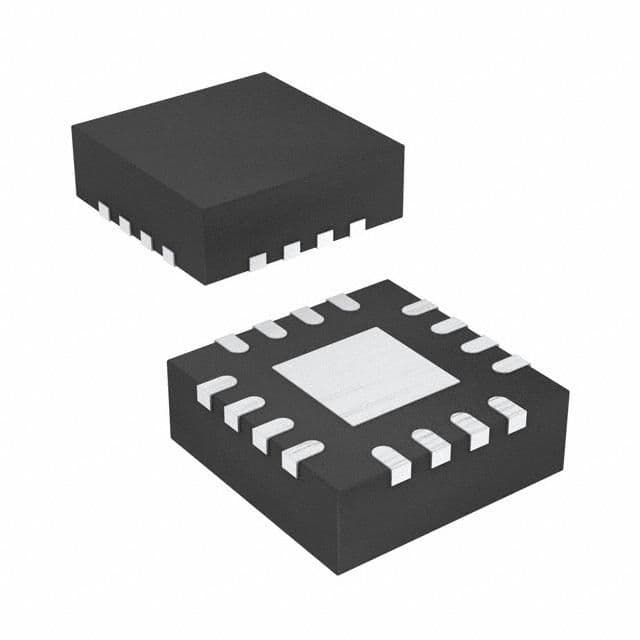

Product Images
