Wideband fully differential amplifier featuring a 620MHz -3dB bandwidth and 1.2GHz gain bandwidth product. This single-channel operational amplifier offers a rail-to-rail output, 570V/µs slew rate, and 7ns settling time. Operating from a 3V to 5.25V supply, it draws 14.2mA nominal supply current and provides 105mA output current per channel. With a 250µV input offset voltage and 6.5µA input bias current, this RoHS compliant component is available in a 16-VQFN package.
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments THS4520RGTTG4 technical specifications.
General
-3db Bandwidth
620MHz
Amplifier Type
DIFFERENTIAL
Bandwidth
620MHz
Package/Case
QFN
Gain Bandwidth Product
1.2GHz
Input Bias Current
6.5uA
Input Offset Voltage (Vos)
250uV
Lead Free
Lead Free
Max I/O Voltage
2.5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Nominal Supply Current
14.2mA
Number of Channels
1
Number of Circuits
1
Operating Supply Current
14.2mA
Output Current
105mA
Output Current per Channel
105mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
94dB
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
7ns
Slew Rate
570V/µs
Voltage Gain
112dB
Weight
0.00085oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4520RGTTG4 Datasheet
Download the complete datasheet for Texas Instruments THS4520RGTTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

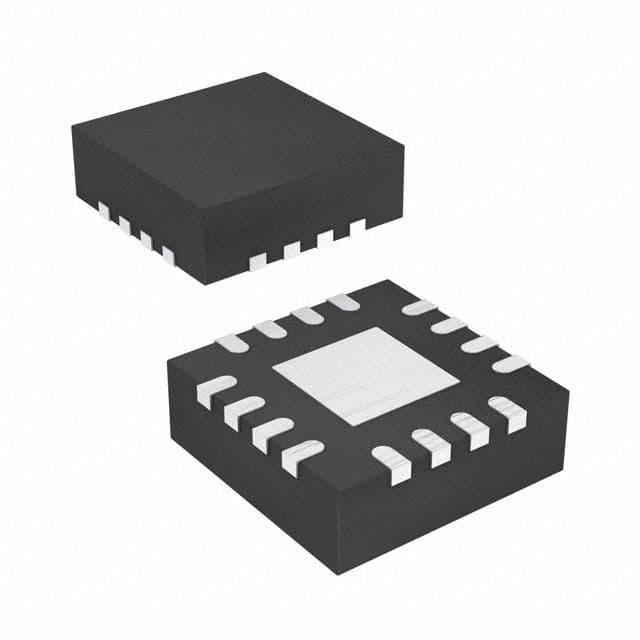

Product Images
