Fully differential amplifier with 36MHz -3dB bandwidth and 27MHz gain bandwidth product. Features ultra-low 250µA operating supply current, 15V/µs slew rate, and 60ns settling time. Offers 90dB common mode rejection ratio and 108dB power supply rejection ratio. Operates from a 2.5V to 5.5V supply, with a maximum input voltage of 5.5V. Packaged in a 10-QFN, this lead-free, RoHS compliant component is suitable for operation between -40°C and 125°C.
PackageQFN
Current250uA
Quick Jump:
Technical Specifications
Texas Instruments THS4531IRUNR technical specifications.
General
-3db Bandwidth
36MHz
Amplifier Type
DIFFERENTIAL
Bandwidth
36MHz
Package/Case
QFN
Common Mode Rejection Ratio
90dB
Gain Bandwidth Product
27MHz
Input Bias Current
160nA
Input Offset Voltage (Vos)
200uV
Lead Free
Lead Free
Max I/O Voltage
1mV
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
250uA
Output Current
50mA
Output Current per Channel
25mA
Package Quantity
3000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
108dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
THS4531
Settling Time
60ns
Slew Rate
15V/µs
Supply Current
250uA
Unity Gain Bandwidth Product
27MHz
Voltage Gain
114dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS4531IRUNR Datasheet
Download the complete datasheet for Texas Instruments THS4531IRUNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

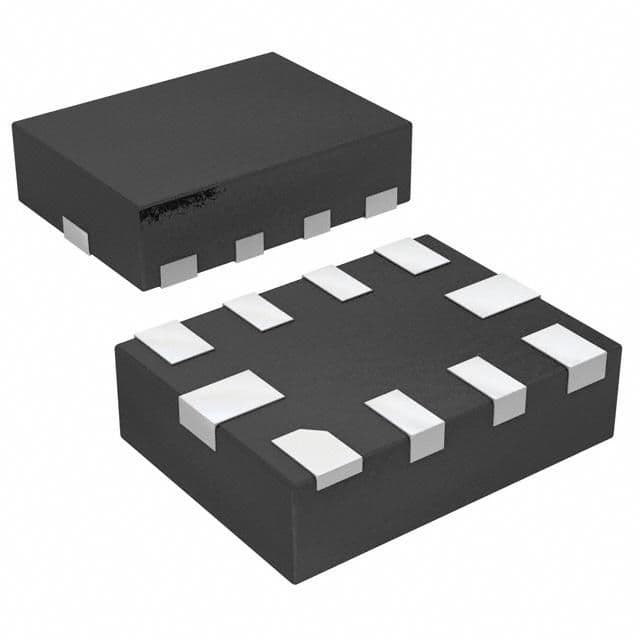

Product Images
