Dual differential line driver with 715MHz bandwidth and 210MHz gain bandwidth product. Features 2 channels, 2 drivers, and a 250mA output current. Operates with a supply voltage range of 9V to 32V and a supply current of 18mA. Offers 62dB common mode rejection ratio and 68dB power supply rejection ratio. Packaged in an HTSSOP with a temperature range of 0°C to 70°C.
PackageHTSSOP
Current18mA
Quick Jump:
Technical Specifications
Texas Instruments THS6022IPWP technical specifications.
General
Bandwidth
715MHz
Package/Case
HTSSOP
Common Mode Rejection Ratio
62dB
Gain Bandwidth Product
210MHz
Input Bias Current
12uA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Max I/O Voltage
4mV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
3.3W
Max Supply Voltage
32V
Min Supply Voltage
9V
Number of Channels
2
Number of Drivers
2
Package Quantity
90
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
68dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
70ns
Slew Rate
1900V/µs
Supply Current
18mA
Weight
0.002046oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments THS6022IPWP Datasheet
Download the complete datasheet for Texas Instruments THS6022IPWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

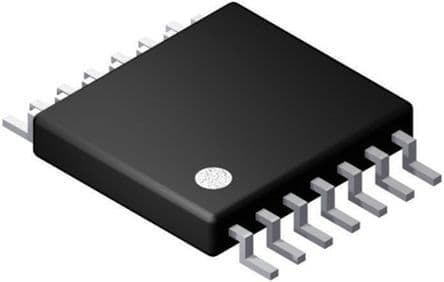

Product Images
