Texas Instruments
TIBPAL16L8-7CN
High-Performance Impact-X<TM> PAL<R> Circuits 20-PDIP 0 to 75
Frequency100MHz
PackagePDIP
Current210mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments TIBPAL16L8-7CN technical specifications.
General
Access Time
7ns
Package/Case
PDIP
Frequency
100MHz
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Max Supply Current
180mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of Circuits
8
Number of I/Os
6
Operating Supply Voltage
5V
Package Quantity
20
Packaging
Rail/Tube
Propagation Delay
7.5ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IMPACT-X™ PAL®
Supply Current
210mA
Turn-On Delay Time
7.5ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TIBPAL16L8-7CN Datasheet
Download the complete datasheet for Texas Instruments TIBPAL16L8-7CN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

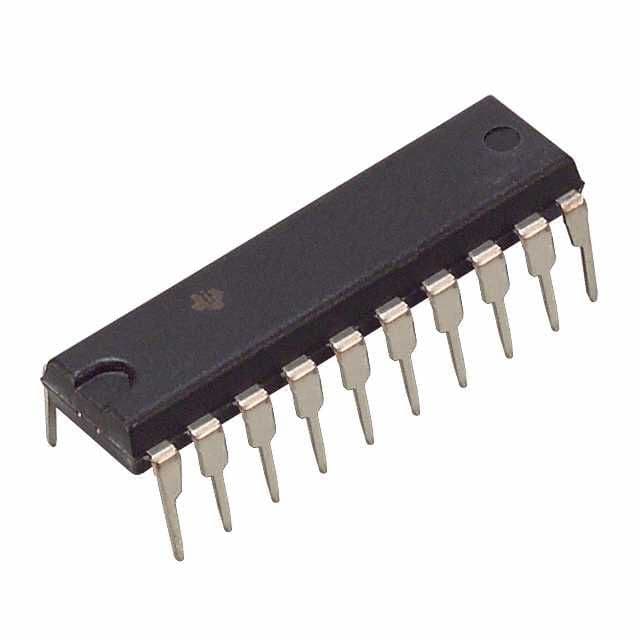

Product Images
