Dual JFET-input operational amplifier featuring a 1MHz bandwidth and 1MHz gain bandwidth product. This general-purpose amplifier offers a 75.56dB voltage gain, 3.5V/µs slew rate, and 400pA input bias current. Operates with dual supply voltages from 3.5V to 18V, consuming 200µA operating supply current. Packaged in an 8-TSSOP, this lead-free and RoHS-compliant component is supplied on tape and reel.
PackageTSSOP
Current500uA
Quick Jump:
Technical Specifications
Texas Instruments TL062CPWR technical specifications.
General
| Bandwidth | 1MHz |
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 400pA |
| Input Offset Voltage (Vos) | 15mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3.5V |
| Max I/O Voltage | 15mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 1MHz |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 200uA |
| Operating Supply Voltage | 18V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 3.5V/µs |
| Supply Current | 500uA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 75.56dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL062CPWR Datasheet
Download the complete datasheet for Texas Instruments TL062CPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

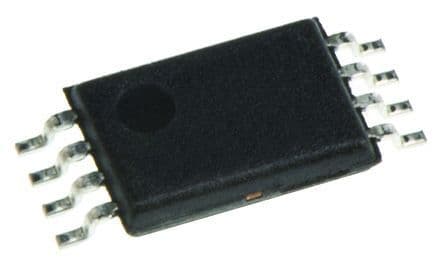

Product Images
