Quad low-power JFET-input general-purpose operational amplifier featuring a 1MHz gain bandwidth product and 3.5V/µs slew rate. This IC offers 4 independent amplifiers with a typical operating supply current of 200µA and a wide operating supply voltage range from 3.5V to 18V dual supply. It boasts a high common mode rejection ratio of 80dB and a voltage gain of 75.56dB. Packaged in a 14-PDIP (N) with dimensions of 19.3mm length, 6.35mm width, and 4.57mm height, this lead-free component operates from -40°C to 85°C.
PackageN
Current1mA
Quick Jump:
Technical Specifications
Texas Instruments TL064IN technical specifications.
General
| Bandwidth | 1MHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 80dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 1MHz |
| Height | 4.57mm |
| Input Bias Current | 200pA |
| Input Offset Voltage (Vos) | 6mV |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3.5V |
| Max I/O Voltage | 6mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 1MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 200uA |
| Operating Supply Voltage | 18V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 3.5V/µs |
| Supply Current | 1mA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 75.56dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL064IN Datasheet
Download the complete datasheet for Texas Instruments TL064IN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

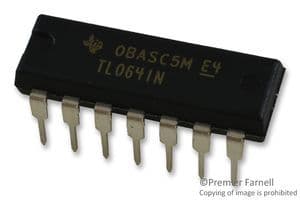

Product Images
