Quad low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 3MHz gain bandwidth product. This IC offers a 75dB common mode rejection ratio and a 200pA input bias current. Designed for operation with dual supply voltages from 3.5V to 18V, it boasts a 13V/µs slew rate and 106.02dB voltage gain. Packaged in a 14-SO (SOP) tape and reel, this RoHS compliant component operates from 0°C to 70°C.
PackageSOP
Current10mA
Quick Jump:
Technical Specifications
Texas Instruments TL074ACNSR technical specifications.
General
Bandwidth
3MHz
Package/Case
SOP
Common Mode Rejection Ratio
75dB
Gain Bandwidth Product
3MHz
Input Bias Current
200pA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
6mV
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Nominal Gain Bandwidth Product
3MHz
Number of Channels
4
Number of Circuits
4
Operating Supply Current
1.4mA
Operating Supply Voltage
18V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
13V/µs
Supply Current
10mA
Technology
BIFET
Voltage Gain
106.02dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL074ACNSR Datasheet
Download the complete datasheet for Texas Instruments TL074ACNSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

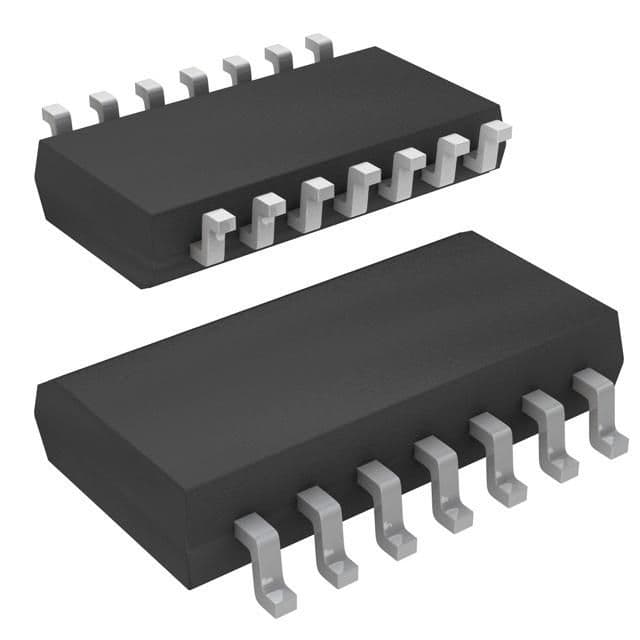

Product Images
