Quad low-noise JFET-input operational amplifier featuring a 3MHz bandwidth and 3MHz gain bandwidth product. This general-purpose amplifier offers a 13V/µs slew rate and 106.02dB voltage gain. It operates with a dual supply voltage range of 3.5V to 18V and a typical supply current of 1.4mA. The component boasts a 200pA input bias current and a 10mV input offset voltage. Packaged in a 14-SO (SOP) format, it is RoHS compliant and operates across a temperature range of -40°C to 85°C.
PackageSOP
Current10mA
Quick Jump:
Technical Specifications
Texas Instruments TL074CNSR technical specifications.
General
| Bandwidth | 3MHz |
| Package/Case | SOP |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 3MHz |
| Input Bias Current | 200pA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3.5V |
| Max I/O Voltage | 10mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 3MHz |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | 18V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 13V/µs |
| Supply Current | 10mA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 106.02dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL074CNSR Datasheet
Download the complete datasheet for Texas Instruments TL074CNSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

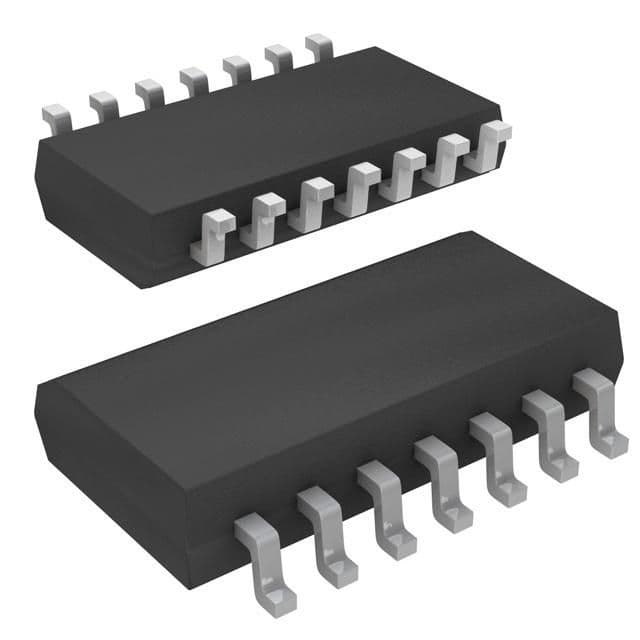

Product Images
