High slew rate JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This single-channel op-amp offers a 75dB common mode rejection ratio and a 1.4mA operating supply current. It operates with dual supply voltages from 3.5V to 18V and is housed in a lead-free 8-PDIP package. Suitable for applications within a -40°C to 85°C temperature range.
PackageP
Current2.8mA
Quick Jump:
Technical Specifications
Texas Instruments TL081IP technical specifications.
General
| Bandwidth | 3MHz |
| Package/Case | P |
| Common Mode Rejection Ratio | 75dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 3MHz |
| Height | 4.57mm |
| Input Bias Current | 400pA |
| Input Offset Voltage (Vos) | 6mV |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3.5V |
| Max I/O Voltage | 15mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 3MHz |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | 18V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 13V/µs |
| Supply Current | 2.8mA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 106.02dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL081IP Datasheet
Download the complete datasheet for Texas Instruments TL081IP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

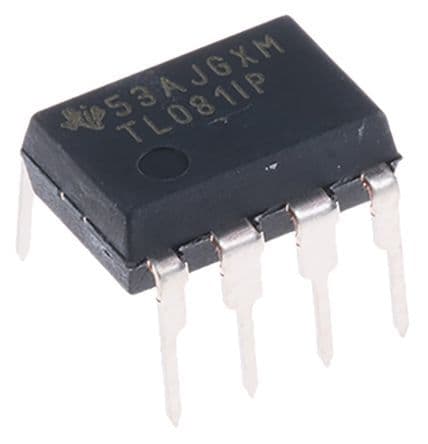

Product Images
