Dual JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This BIFET technology amplifier offers a 75dB common mode rejection ratio and a 6mV input offset voltage. Designed for dual supply operation from 3.5V to 18V, it consumes 1.4mA operating supply current. Packaged in an 8-TSSOP on tape and reel, this RoHS compliant component operates within a -40°C to 85°C temperature range.
PackageTSSOP
Current5.6mA
Quick Jump:
Technical Specifications
Texas Instruments TL082IPWR technical specifications.
General
Bandwidth
3MHz
Package/Case
TSSOP
Common Mode Rejection Ratio
75dB
Gain Bandwidth Product
3MHz
Input Bias Current
200pA
Input Offset Voltage (Vos)
6mV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
6mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
3MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.4mA
Operating Supply Voltage
18V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
13V/µs
Supply Current
5.6mA
Technology
BIFET
Unity Gain Bandwidth Product
3MHz
Voltage Gain
106.02dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL082IPWR Datasheet
Download the complete datasheet for Texas Instruments TL082IPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

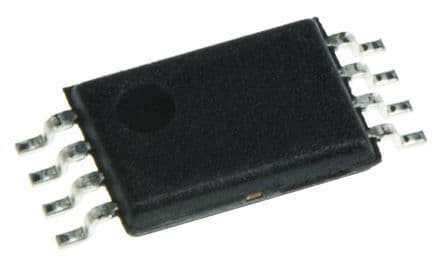

Product Images
