Quad JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This integrated circuit offers a 70dB common mode rejection ratio and operates with dual supply voltages from ±3.5V to ±18V. Designed with BIFET technology, it boasts a low input bias current of 400pA and an input offset voltage of 15mV. Packaged in a 14-pin SOIC, this RoHS compliant component is suitable for operation across a wide temperature range of -40°C to 125°C.
Frequency1kHz
PackageSOIC
Current11.2mA
Quick Jump:
Technical Specifications
Texas Instruments TL084CNSR technical specifications.
General
| Bandwidth | 3MHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 15V |
| Gain Bandwidth Product | 3MHz |
| Height | 1.85mm |
| Input Bias Current | 400pA |
| Input Offset Voltage (Vos) | 15mV |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3.5V |
| Max Frequency | 1kHz |
| Max I/O Voltage | 15mV |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Nominal Gain Bandwidth Product | 3MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 1.4mA |
| Operating Supply Voltage | 18V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 13V/µs |
| Supply Current | 11.2mA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 106.02dB |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL084CNSR Datasheet
Download the complete datasheet for Texas Instruments TL084CNSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

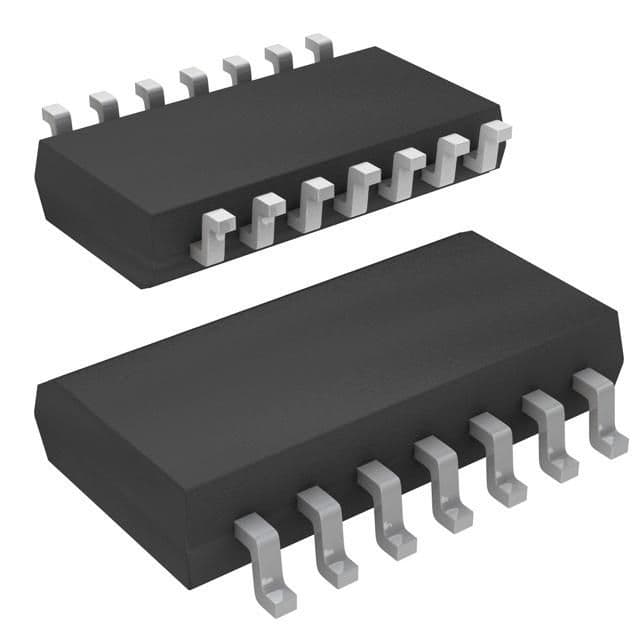

Product Images
