1.5-A, positive, fixed output linear voltage regulator with 1.5V output voltage and 340mV dropout voltage. Features 20V maximum input voltage, 1.6A minimum current limit, and 1mA quiescent current. Operates from -40°C to 125°C with 3% accuracy. Includes reverse current and reverse voltage protection. Packaged in a 6-SOT-223, lead-free, RoHS compliant package.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TL1963A-15DCQR technical specifications.
General
Accuracy
3%
Package/Case
SOT-223
Dropout Voltage
340mV
Input Bias Current
1mA
Lead Free
Lead Free
Min Current Limit
1.6A
Max Input Voltage
20V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
1.5V
Min Output Voltage
1.5V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
1mA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL1963A-15DCQR Datasheet
Download the complete datasheet for Texas Instruments TL1963A-15DCQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

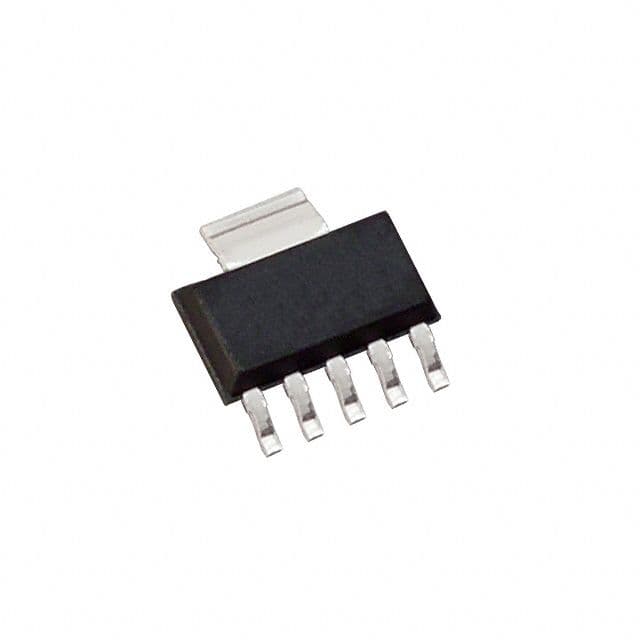

Product Images
