Texas Instruments
TL2575HV-15IKV
1-A Simple Step-Down Switching Voltage Regulators 5-TO-220 -40 to 125
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments TL2575HV-15IKV technical specifications.
General
Package/Case
TO-220-5
Lead Free
Lead Free
Max Input Voltage
60V
Min Input Voltage
4.75V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Through Hole
Number of Outputs
1
Operating Supply Voltage
60V
Output Current
1A
Output Type
Fixed
Output Voltage
15V
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
5mA
RoHS Compliant
Yes
Series
TL2575HV-15
Synchronous Rectifier
No
Weight
0.067733oz
Width
8.38mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL2575HV-15IKV Datasheet
Download the complete datasheet for Texas Instruments TL2575HV-15IKV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

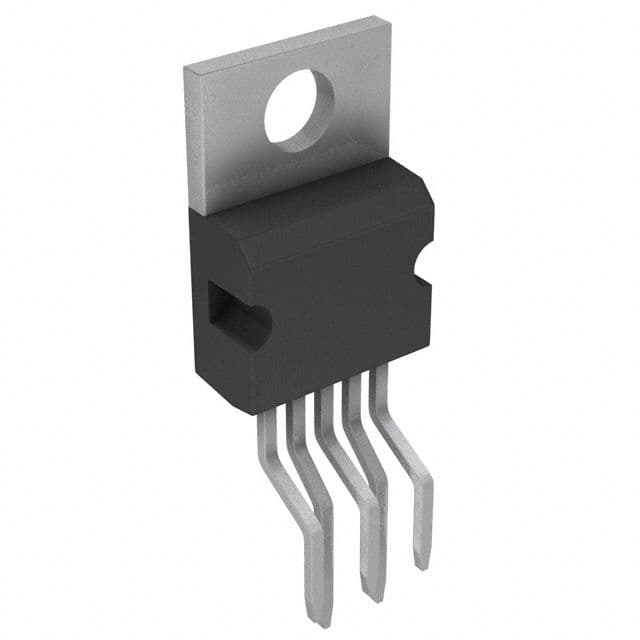

Product Images
