Texas Instruments
TL2575HV-33QKTTRQ1
Automotive Catalog 1-A Simple Step-Down Switching Voltage Regulators 5-DDPAK/TO-263 -40 to 125
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TL2575HV-33QKTTRQ1 technical specifications.
General
| Package/Case | TO-263-5 |
| Lead Free | Lead Free |
| Max Input Voltage | 60V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Min Output Voltage | 3.3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 60V |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Quiescent Current | 5mA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TL2575HV-33QKTTRQ1 Datasheet
Download the complete datasheet for Texas Instruments TL2575HV-33QKTTRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

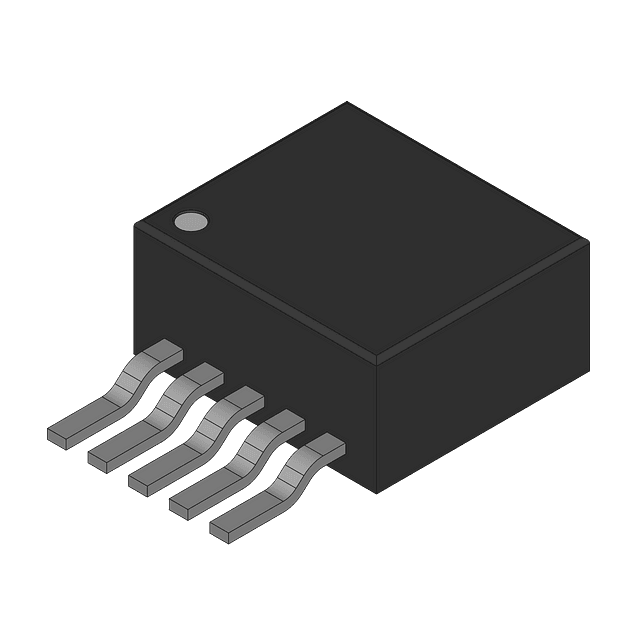

Product Images
