Technical Specifications
Texas Instruments TL431BILP technical specifications.
General
Package/Case
TO-92-3
Cathode Current
700uA
Height
3.68mm
Lead Free
Lead Free
Length
4.83mm
Max Input Voltage
37V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
36V
Min Output Voltage
2.495V
Number of Channels
1
Output Current
100mA
Output Type
Adjustable
Output Voltage
36V
Package Quantity
1000
Packaging
Bulk
Reference Type
Shunt, Adjustable
RoHS Compliant
Yes
Tolerance
0.5%
Weight
0.00752oz
Width
3.43mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL431BILP Datasheet
Download the complete datasheet for Texas Instruments TL431BILP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

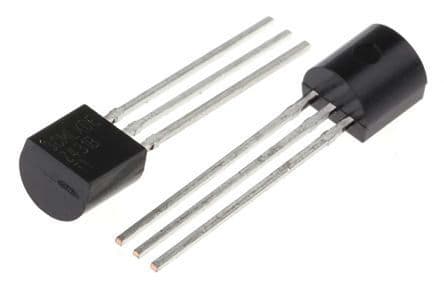

Product Images
