Texas Instruments
TL7712ACP
Single-supply supervisor for 12-V systems with programmable delay time 8-PDIP 0 to 70
PackageP
Current1.8mA
Quick Jump:
Technical Specifications
Texas Instruments TL7712ACP technical specifications.
General
Package/Case
P
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Reset Threshold Voltage
11V
Min Reset Threshold Voltage
10.6V
Max Supply Current
3mA
Max Supply Voltage
18V
Min Supply Voltage
3.5V
Number of Voltages Monitored
1
Operating Supply Current
1.8mA
Overvoltage Threshold
11V
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
1.8mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active High/Active Low
Reset Timeout
1us
RoHS Compliant
Yes
Supply Current
1.8mA
Threshold Voltage
10.8V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TL7712ACP Datasheet
Download the complete datasheet for Texas Instruments TL7712ACP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

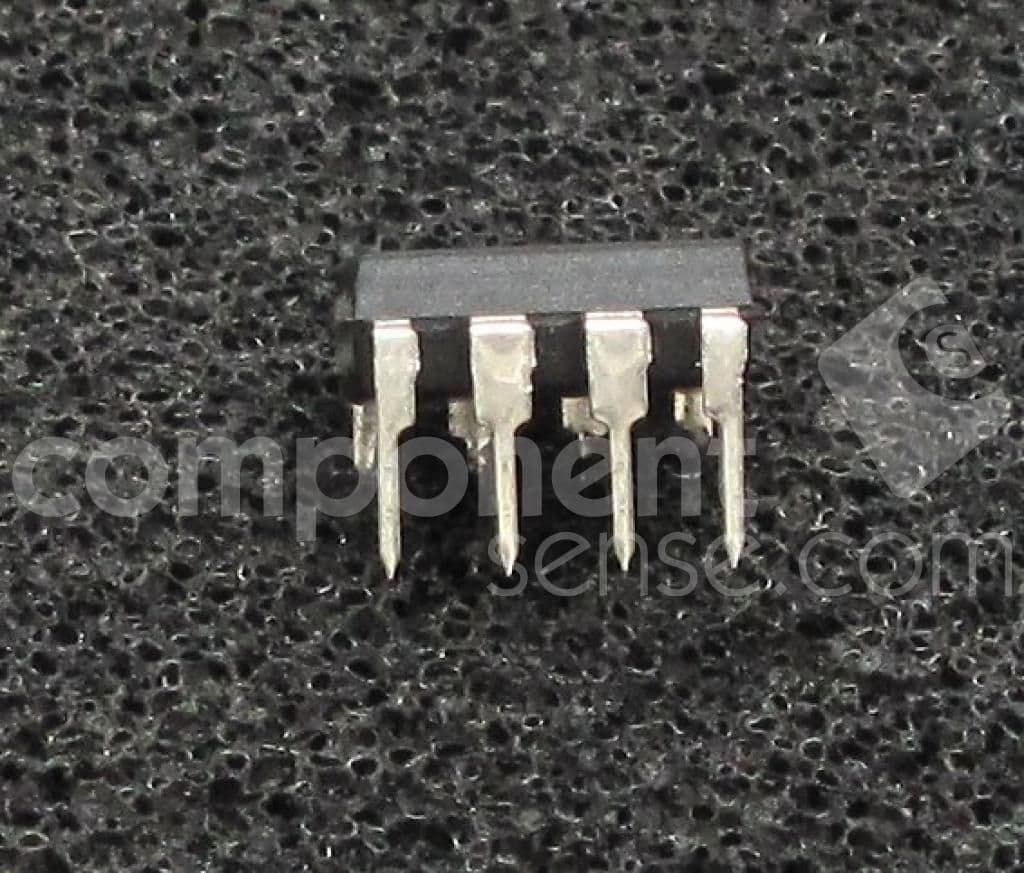

Product Images
