Dual operational amplifier featuring a 1.3MHz bandwidth and 3.6V/µs slew rate. This general-purpose amplifier operates from 3V to 16V supply voltage with a low 1.9mA operating supply current. It offers a 1.7MHz gain bandwidth product and 60pA input bias current, housed in an 8-pin SOIC package. Suitable for single-supply applications, it provides 30mA output current per channel and a 65dB common mode rejection ratio.
PackageD
Current4mA
Power725mW
Quick Jump:
Technical Specifications
Texas Instruments TLC272CD technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.3MHz
Package/Case
D
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
1.7MHz
Height
1.58mm
Input Bias Current
60pA
Input Offset Voltage (Vos)
10mV
Lead Free
Lead Free
Length
4.9mm
Max I/O Voltage
10mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
3V
Nominal Gain Bandwidth Product
1.7MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.9mA
Output Current per Channel
30mA
Package Quantity
75
Packaging
Rail/Tube
Power Dissipation
725mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LinCMOS™
Slew Rate
3.6V/µs
Supply Current
4mA
Thickness
1.58mm
Unity Gain Bandwidth Product
1.7MHz
Voltage Gain
87.23dB
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC272CD Datasheet
Download the complete datasheet for Texas Instruments TLC272CD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

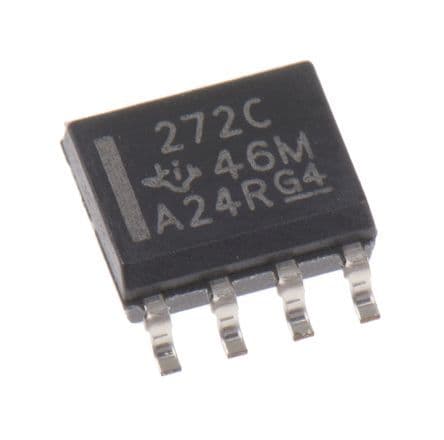

Product Images
