Quad operational amplifier featuring a 1.3MHz bandwidth and 3.6V/µs slew rate. This general-purpose IC offers a 1.7MHz gain bandwidth product and 87.23dB voltage gain. It operates from a 3V to 16V supply range with a maximum supply current of 6.4mA. The component boasts a low input bias current of 60pA and is housed in a 14-SOIC package.
PackageD
Current8mA
Power950mW
Quick Jump:
Technical Specifications
Texas Instruments TLC274CD technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.3MHz
Package/Case
D
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
1.7MHz
Height
1.58mm
Input Bias Current
60pA
Input Offset Voltage (Vos)
10mV
Lead Free
Lead Free
Length
8.65mm
Max I/O Voltage
10mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
950mW
Max Supply Current
6.4mA
Max Supply Voltage
16V
Min Supply Voltage
3V
Nominal Gain Bandwidth Product
1.7MHz
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
3.8mA
Output Current per Channel
30mA
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
950mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LinCMOS™
Slew Rate
3.6V/µs
Supply Current
8mA
Unity Gain Bandwidth Product
1.7MHz
Voltage Gain
87.23dB
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC274CD Datasheet
Download the complete datasheet for Texas Instruments TLC274CD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

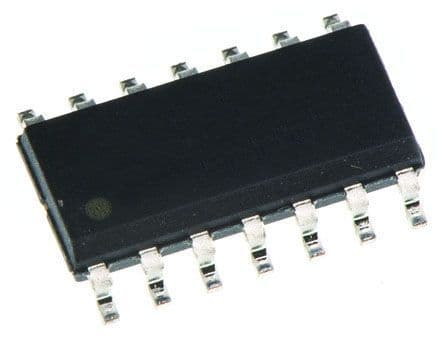

Product Images
