8-bit, 40MS/s Analog-to-Digital Converter (ADC) with 1LSB Integral and Differential Nonlinearity. Features single-ended input, parallel interface, and a 44dB Signal-to-Noise Ratio. Operates from a 4.75V to 5.25V supply with 17mA supply current and 85mW power dissipation. Packaged in a 24-SOIC on tape and reel, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
PackageSOP
Current17mA
Power85mW
Quick Jump:
Technical Specifications
Texas Instruments TLC5540CNSR technical specifications.
General
Package/Case
SOP
Conversion Rate
40MS/s
Differential Nonlinearity
1LSB
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
85mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of Inputs
1
Package Quantity
1
Packaging
Tape and Reel
Power Consumption
85mW
Reach SVHC Compliant
Unknown
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
40000000S/s
Signal to Noise Ratio (SNR)
44dB
Spurious-free dynamic range (SFDR)
42dB
Supply Current
17mA
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC5540CNSR Datasheet
Download the complete datasheet for Texas Instruments TLC5540CNSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

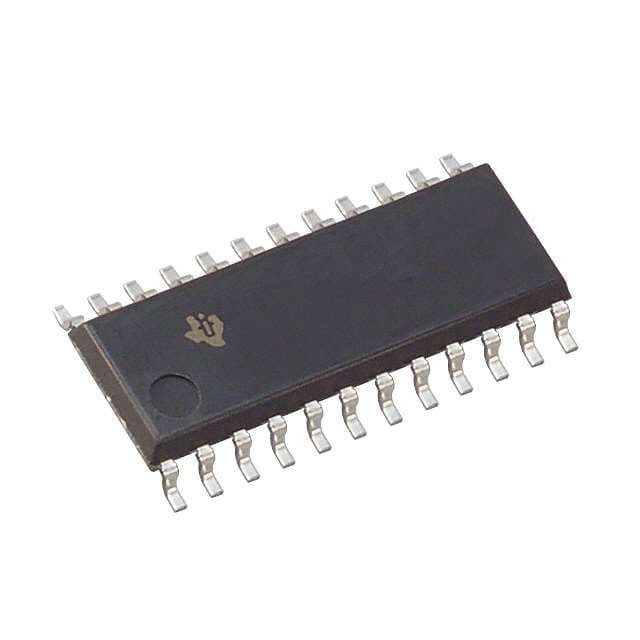

Product Images
