8-bit, 40 MSPS Analog-to-Digital Converter (ADC) featuring a single-ended input and internal Sample-and-Hold circuitry. This unipolar device offers a 44dB Signal-to-Noise Ratio (SNR) and 42dB Spurious-Free Dynamic Range (SFDR) with 1 LSB Integral Nonlinearity (INL). Operating from a 4.75V to 5.25V supply range, it consumes a maximum of 85mW and a nominal 17mA supply current. The ADC utilizes a parallel interface and is housed in a 24-SO package, suitable for operation between -40°C and 85°C.
PackageSOP
PolarityUnipolar
Power85mW
Quick Jump:
Technical Specifications
Texas Instruments TLC5540INSRG4 technical specifications.
General
Package/Case
SOP
Conversion Rate
40000KS/s
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
1LSB
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
85mW
Max Supply Voltage (DC)
5.25V
Min Supply Voltage (DC)
4.75V
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
17mA
Number of Analog Inputs
1
Number of Bits
8
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Unipolar
Power Consumption
85mW
Resolution
8b
RoHS Compliant
Yes
Sampling Rate
40MS/s
Signal to Noise Ratio (SNR)
44dB
Spurious-free dynamic range (SFDR)
42dB
Supply Type
Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TLC5540INSRG4 Datasheet
Download the complete datasheet for Texas Instruments TLC5540INSRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

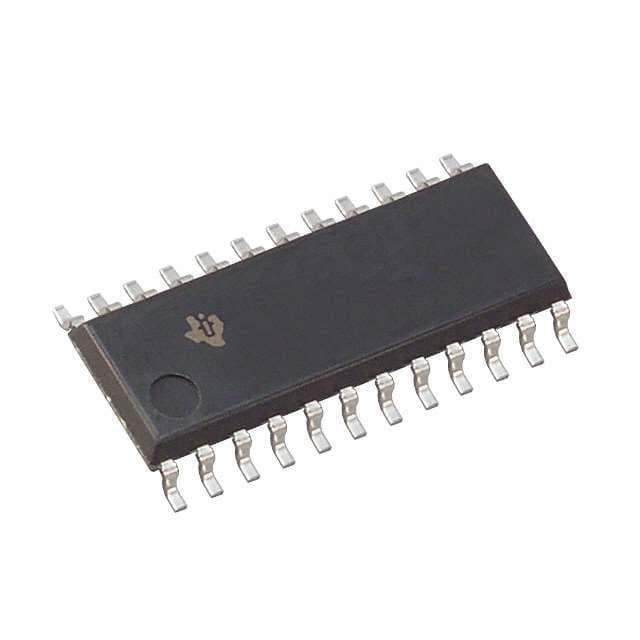

Product Images
