8-channel constant-current LED sink driver with 120mA maximum output current per channel. Features 30MHz operating frequency, 17V output voltage, and 5.5V maximum supply voltage. Includes VLED short detection and operates across a -40°C to 125°C temperature range. Packaged in a 16-TSSOP, this RoHS compliant component is supplied on tape and reel.
Frequency30MHz
PackageTSSOP
Current22mA
Power900mW
Quick Jump:
Technical Specifications
Texas Instruments TLC5917IPWR technical specifications.
General
| Package/Case | TSSOP |
| Frequency | 30MHz |
| High Level Output Current | -1mA |
| Lead Free | Lead Free |
| Low Level Output Current | 1mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Power Dissipation | 900mW |
| Max Supply Current | 22mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Outputs | 8 |
| Number of Segments | 8 |
| Operating Frequency | 30 MHz |
| Output Current | 120mA |
| Output Voltage | 17V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 900mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 22mA |
| Topology | Boost |
| Weight | 0.002183oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TLC5917IPWR Datasheet
Download the complete datasheet for Texas Instruments TLC5917IPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

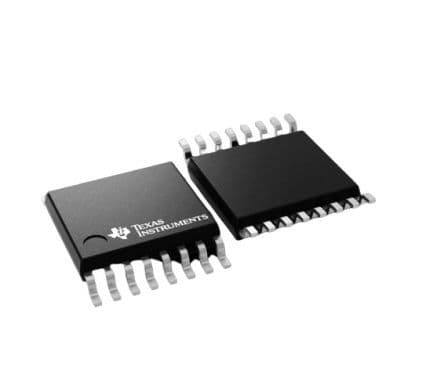

Product Images
